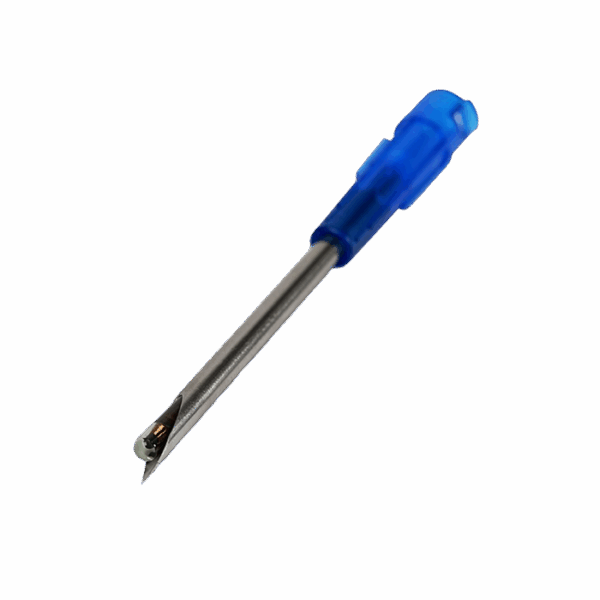

Micro Transponder with Lancet for Direct Implantation
Micro-sized, implantable, wireless identification transponder tags are the only way to uniquely identify an animal. Identify any animal in any group with a simple hand-held reader. Transfer the reader data to a database on a computer to track studies with animals. Kent Scientific transponder systems are suitable for weanling (21-24 days) and adult animals.
Requires the use of a Trovan programmed reader.
Includes:
- Individually packaged lancet with micro transponders (25 or 50)
- Pistol grip implanter
Need Help? Chat with an Expert
What you get on day one
About the system
The passive RFID transponder system is based on cutting-edge research and development. It provides a number of unique performance features which are protected by nine awarded patents, with additional patents pending. These features optimize achievable read distances while minimizing transponder dimensions, providing exceptional read rates (reading speed) and unmatched system dependability.
Sophisticated automatic test methods implemented by the manufacturer ensure that no code is duplicated.
RFID transponders can be read irrespective of their orientation to the reader.
Product specifications
| Transponder Dimensions: | 11.5 mm (0.45") L x 2.12 mm (0.083") D |
| Lancet Dimensions: | 3 2mm (1.26") L x 2 mm (0.08") x 2 mm O.D. |
| Weight: | 100 mg ± 10 mg |
| Encapsulation: | Biocompatible glass BIO GLASS 8625 |
| Environment: | Water immersion IP68 |
| Mechanical/Vibration: | IEC 68.2.6 (6 g, 14...200 Hz, 3 axis, 8 Hz/axis) |
| Mechanical/Shock: | IEC 68.2.29 (30 g, 18 ms, 3 axis, 1084 times/axis) |
| Storage Temperature: | -40 to 140°C |
| Operating Temperature: | -20 to 75 °C |
| Identification Code: | 64 bits |
| Transmit Protocol: | PSK |
| Reading Range: | GR-250 up to 24 cm / Maximum up to 35 cm |
| Operating Frequency: | 128 kHz ± 6 kHz |
| Reader Requirements: | Trovan programmed reader |
Need Help With Your Order?
Our product specialists are here to help with additional information on our products, grant proposals, orders and more. Give us a call today!
Call 888-572-8887
Help & Support
Have questions or need assistance? Our friendly team is ready to help with orders, shipping, or product care. Contact us anytime—we’re just a click away!
We reply fast, usually in 24 hours.
Frequently Asked Questions
Can the implanted transponders be re-used?
Yes. However, the transponders are encapsulated in glass and if damaged, fluid may leak into the transponder through small holes or cracks that may occur during removal and re-implantation. Any fluid in the transponder will cause the unit to malfunction.
If you are going to re-use a transponder, it should be cleaned with medical grade alcohol prior to re-implantation.
Do RFID microchips meet International standards?
Yes.
How do I clean my transponder?
We recommend cleaning the transponder with medical grade alcohol, and sterilizing using a chemical sterilant. Alide, Zephiran, and Cidex are some examples of common choices to sterilize the transponders.
