CapnoScan®

End-tidal CO2 monitor module

Item # NFC Category:

CapnoScan® provides real-time capnography and sidestream sampling. To obtain end-tidal CO2 measurements, CapnoScan requires the animal be intubated and ventilated.

Need Help? Chat with an Expert

123 4567 890

Call Us

What you get on day one

Low sampling rates

For both mice and rats

Reduced maintenance

Long-life pump and internal components

Compensates for temperature, pressure and gas type

Allows for accurate measurements

Highly sensitive infrared spectroscopy CO2 sensor

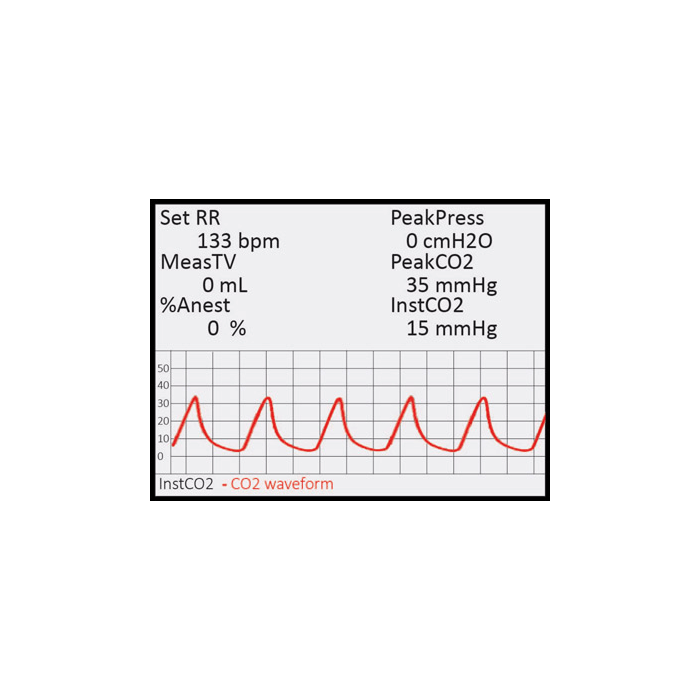

Delivers clear, accurate capnogram

What your peers say

Lisa Saccommano, PhD
University of Oregon
“I just wanted to touch base and follow up on the PhysioSuite Capnograph and the temperature probe. It has really worked out for us and the temp probe was a great addition. Both have been able to import directly into Powerlab which is a great feature!”
Antonis Pouliopoulos, PhD
Columbia University
“I love the SomnoSuite system, because it is digital, we have absolute control over the delivered anesthetic, it has an intuitive user interface with an easy-to-use touchscreen, it can be enhanced with other functionalities within the same device (e.g. pulse oximetry, CO2 measurements etc.), it can be used with multiple animals at the same time, and many other functions that analog systems do not offer.Our lab uses only SomnoSuite, and I propose the system to other colleagues as well.”
Brendan Dougherty PhD
University of Minnesota
“We have had some challenges optimizing the system for our specific needs, but the support team has been excellent!”
International Inhalation Anesthetic Company
“We have since upgraded one of our units to include EXCO2 and the mouse vent and are planning on using it on our next study to further our success rate by reducing some more dead space and knowing what the EXCO2 is during the recovery phase.”

CapnoScan resources

1.) Whitepaper: Monitoring Vital Signs of Laboratory Mice and Rats During Surgery: Download File


2.) PhysioSuite and CapnoScan Connection Diagram: Download File

Open File

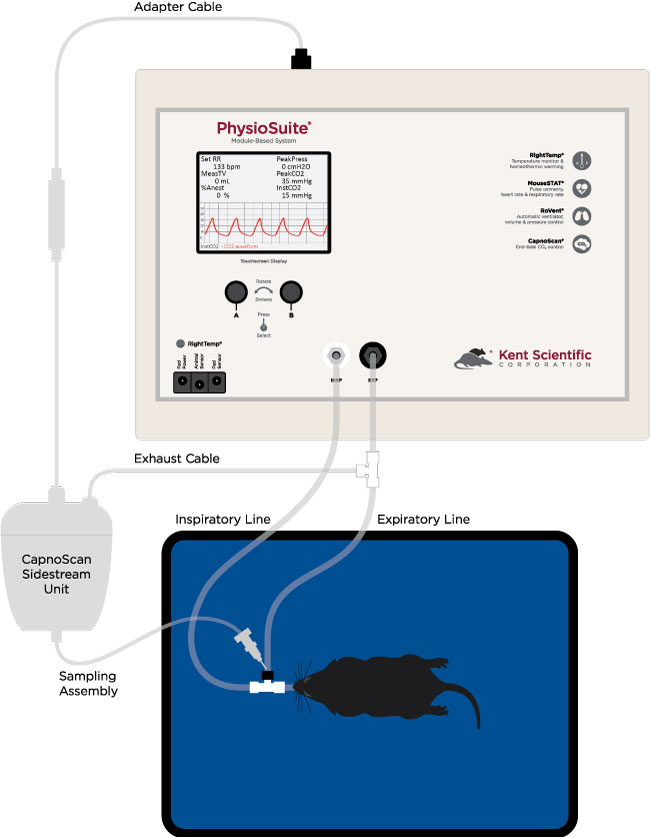

Connecting CapnoScan to your setup

This diagram illustrates how the end-tidal CO2 sensor connects to your PhysioSuite® setup.

Specifications
Transducer type Sidestream sensor
Sample rate 50 mL/min. +/- 10mL/min.
Initialization time< 15 seconds
Measurement range0 to 16%, 0 to 120 mmHg
Rise time< 60 ms
Resolution 0.1 mmHg            0 to 69 mmHg
0.25 mmHg       70 to 150 mmHg
Accuracy 0 to 150 mmHg, ±2 mmHg

Scientific Publications

Efficacy and safety testing of a COVID-19 era emergency ventilator in a healthy rabbit lung model

Continue Reading

Stroke propensity in the Th3+/ mouse model of ß-thalassemia intermedia

Continue Reading
End-Tidal CO2 Monitor Module

CapnoScan®

The CapnoScan module is available as an add-on to the SomnoSuite and PhysioSuite Systems along with a number of other modules as shown below. Choose your system based on your monitoring needs.
SomnoSuite®
SomnoSuite® Select
PhysioSuite®
PhysioSuite® Select
Other Available Modules:
Automatic Ventilator Module
RoVent®
Pulse Oximeter and Rat & Mouse Heart Rate Monitor Module
MouseSTAT®
End-Tidal CO2 Monitor Module
CapnoScan®
Low-Flow Anesthesia System
SomnoSuite®

Need Help With Your Order?

Our product specialists are here to help with additional information on our products, grant proposals, orders and more. Give us a call today!

Call 888-572-8887

We're Here for You

Help & Support

Have questions or need assistance? Our friendly team is ready to help with orders, shipping, or product care. Contact us anytime—we’re just a click away!

We reply fast, usually in 24 hours.

Ask For Support

Frequently Asked Questions

Yes, there are multiple options to record and manage data. The system includes one analog output (for a single parameter), or you may export all parameters digitally via mini-USB.

Yes, the PhysioSuite can be used alongside your stereotaxic frame.

The normal ETCO2 range in animals is 30 to 45mmHg or 4.0 to 5.5%. Sensor placement is an important factor in determining sidestream ETCO2. Place the sensor on the expiratory line, as close to the animal’s airway as possible.

Yes, the controller can be sterilized with hydrogen peroxide gas (or VHP). You may use the same sterilization protocol used for laptop computers and other electronics in your facility. Be sure to open any caps or ports to allow the gas to reach inner mechanisms and tubing, if applicable.
