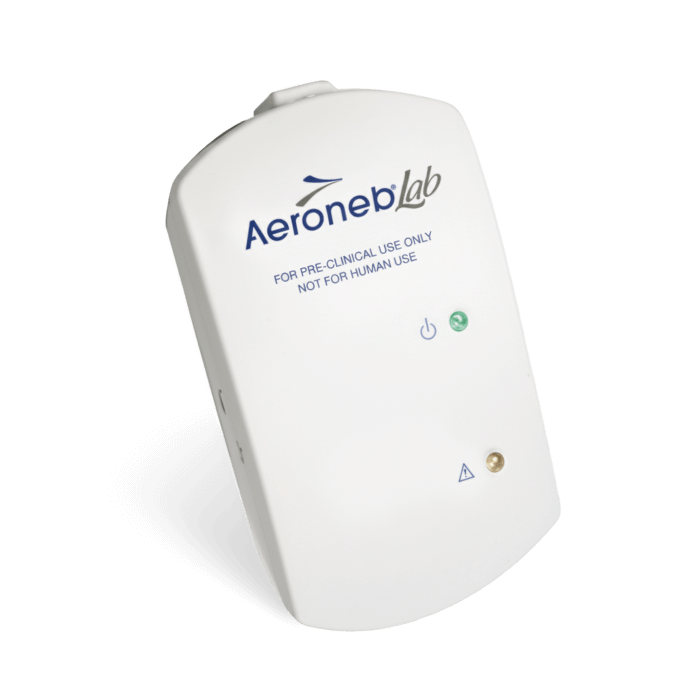

Aeroneb® Lab Control Module
The Aeroneb® Lab Nebulizer uses a high-efficiency aerosolization technology for use in pre-clinical aerosol research and inhalation studies, providing a valuable link between pre-clinical and clinical product development.
Using Aerogen’s OnQ™ Aerosol Generator, the Aeroneb is designed to produce a highly respirable aerosol of virtually any drug in liquid. It produces a fine droplet, low-velocity aerosol without compressed air, and integrates easily into existing exposure and aerosol testing equipment.
Aeroneb is a registered trademark of Nektar Therapeutics.
Need Help? Chat with an Expert
What you get on day one
Note: The nebulizer delivery system requires the use of a flow regulated air source such as a pump or compressed gas source (not included) to move the aerosol through the tubing towards the animal.
Product versions
Aeroneb Lab Nebulizer, Small VMD
- Flow rate: >0.1 mL/min
- Particle size: VMD between 2.5 – 4.0 µm
- Residual volume: <0.2 mL
Aeroneb Lab Nebulizer, standard VMD
- Flow rate: >0.3 mL/min
- Particle size: VMD between 4.0 – 6.0 µm
- Residual volume: <0.2 mL: <0.2 mL
Product specifications
| Nebulizer unit dimensions | 50 mm W x 45 mm H x 50 mm D |
| Control module dimensions | 75 mm W x 33 mm H x 131 mm D |
| Control module cable | 1.8 m long |
| Nebulizer unit weight | 25 g nebulizer unit and filler cap |
| Control module weight | 178 g, including cable |
| Nebulizer unit capacity | Maximum 10 ml |
| Power source | Can operate from AC/DC adapter (input 100 to 240 VAC 50 to 60 Hz, output 9V) OR an external 9V DC power supply |
| Power consumption | <2.57 watts |
